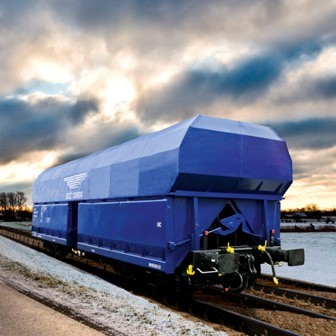

4-axle tipping wagon with arched floor for carriage of coal type Fals

WAGON, TIPPING, 4AXLED, FOR THE CARRIAGE OF COAL, WITH AN ARCHED FLOOR, Fals type
WAGON, TIPPING, 4AXLED, FOR THE CARRIAGE OF COAL, WITH AN ARCHED FLOOR, Fals type

Technical description: The wagon is used for the carriage of coal and coke. The construction of the wagon is adapted to mechanical loading. Unloading is performed through four valves with the help of a lever mechanism that is operated by compressed air or manually.

The floor of the wagon is arched, angled 49 degrees against the horizontal plane.

Pictures and drawings

WAGON, TIPPING, 4AXLED, FOR THE CARRIAGE OF COAL, WITH AN ARCHED FLOOR, Fals type
WAGON, TIPPING, 4AXLED, FOR THE CARRIAGE OF COAL, WITH AN ARCHED FLOOR, Fals type

Technical parameters

Number of axles4
Maximum loading (t)55
Axle loading (t)20
Tare weight (t)25
Wheel base (mm)7 500
Wagon length between buffers without brake platform (mm)12 790
Usable volume (m3)75
