4-axle open wagon with valveless floor type Eas

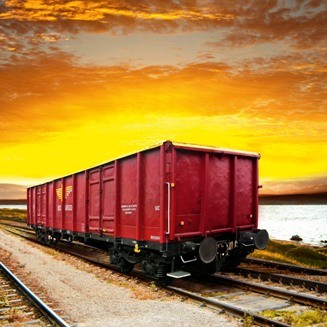

WAGON, FREIGHT, OPEN, 4AXLED, WITH A VALVELESS FLOOR, Eas type
WAGON, FREIGHT, OPEN, 4AXLED, WITH A VALVELESS FLOOR, Eas type

Technical description: The wagon is used for the carriage of bulk goods, packed goods and other goods that do not require protection against atmospheric impact.

The construction of the wagon allows mechanized loading and unloading operations through the use of lifting vehicles, including a wagon tipper.

The body of the wagon is a metal one, built from two lateral and two mobile front articulated walls. On each side wall there are two two-winged doors with a clearance of 1800 x 1900 mm. The floor of the wagon is made of softwood or is a metal one.

Pictures and drawings

WAGON, FREIGHT, OPEN, 4AXLED, WITH A VALVELESS FLOOR, Eas type
WAGON, FREIGHT, OPEN, 4AXLED, WITH A VALVELESS FLOOR, Eas type

Technical parameters

Number of axles4
Maximum loading (t)60
Axle loading (t)20
Tare weight (t)20
Wheel base (mm)9 000
Wagon length between buffers without brake platform (mm)14 040
Usable length (mm)12 710
Usable width (mm)2 780
Usable area (m2)36
Usable volume (m3)72
