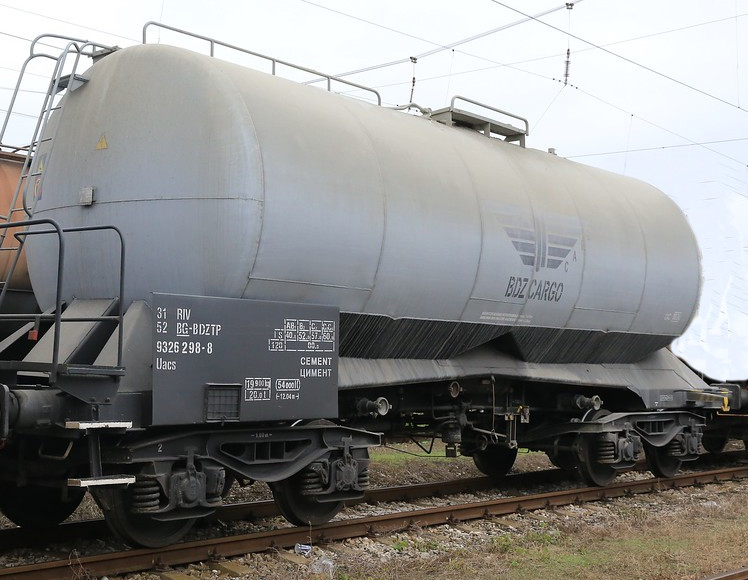

4-axle wagon for carriage of cement (cement-carrier) Uacs type

Technical description: The wagon is used for the carriage of cement in a loose state. The tank consists of two topless pyramids made of sheet iron. Equipped on the top with a sliding roof for loading with a clearance with a diameter of 500 mm for loading and for the personnel to enter. The sliding roof is reached through stairs and platforms.

The wagon is equipped with an unloading device driven by compressed air with a maximum working pressure of 0,25 МРа, ensuring internal movement and lowering the goods. Its operation allows transporting the unloaded cement at a distance of 60 m at a 20 m height. Mounted on the air device of the unloading system are stop valves preventing the return of the product, and protection valves that react at a pressure of 0,26 МРа. The residue of the cement after unloading is not more than 150 kg.

For freeing the reservoir from the overpressure, there is an automatic deaerating system that enters into operation when the transfer of air is discontinued.

Pictures and drawings

WAGON, CEMENT-CARRIER, 4-AXLED FOR THE CARRIAGE OF CEMENT, Uacs type
WAGON, CEMENT-CARRIER, 4-AXLED FOR THE CARRIAGE OF CEMENT, Uacs type

Technical parameters

Number of axles4
Maximum loading (t)60.5
Axle loading (t)20
Tare weight (t)19.5
Wheel base (mm)7 000
Length of the wagon between buffers (mm)12 040
Length of the tank (mm)9 124
Usable volume (m3)54
