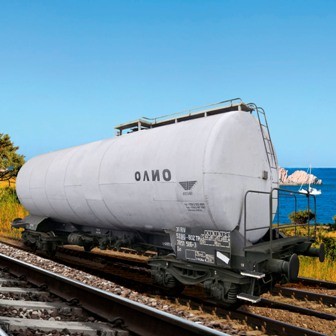

TANK WAGON FOR OIL PRODUCTS, 71 М3, Zas type
TANK WAGON FOR OIL PRODUCTS, 71 М3, Zas type

Technical description: The wagon is used for the carriage of oil products. The tank consists of cylindrical units of sheet iron. Equipped on the top with a sliding roof for loading with a clearance of 150 mm, and with 4 lateral cranes of the Gestra type with a clearance of 100 mm. For the protection of the tank against overpressure and underpressure, a double-acting protection valve is mounted, acting at a pressure of 0,15 МРа. coal and coke. The structure of the wagon is adapted to mechanical loading. Unloading is performed through four valves with the help of a lever mechanism that is operated with compressed air or manually.

Pictures and drawings



Technical parameters

Number of axles4
Maximum loading (t)59.4
Axle loading (t)20
Tare weight (t)20.6
Wheel base (mm)9 200
Wagon length between buffers (mm)14 240
Internal diameter of the tank (mm)2 800
Usable volume (кm3)71
