4-axle flat wagon type Res

4-axle flat wagon type Res

Technical description: The wagon is used as a platform with stanchions for the carriage of long items of consignments, rods, rolled iron, wood and other goods and as a platform with side lids for the carriage of loose goods that do not require protection against atmospheric impact.

The front lateral walls are connected to the chassis in a joint-like manner.

The wagon has 16 pieces of rotating stanchions 8 on both sides, and 16 braces, respectively, for fastening the goods.

Pictures and drawings

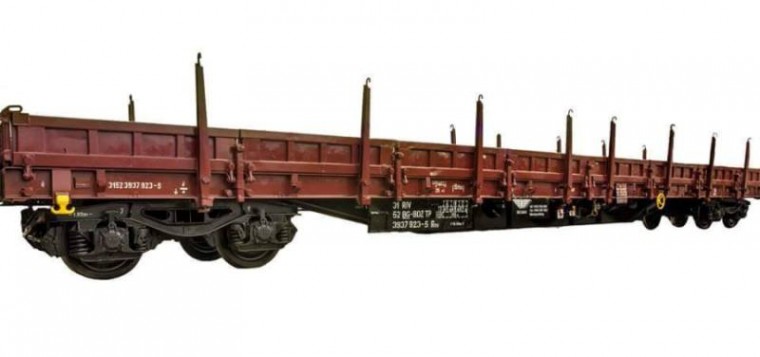

WAGON, FLAT, 4-AXLED Res type
WAGON, FLAT, 4-AXLED Res type

Technical parameters

Number of axles4
Maximum loading (t)57
Axle loading (t)20
Tare weight (t)23
Wheel base (mm)14 860
Wagon length between buffers without brake platform (mm)19 900
Usable length (mm)18 500
Usable width (mm)2 640
Usable area (m2)50
