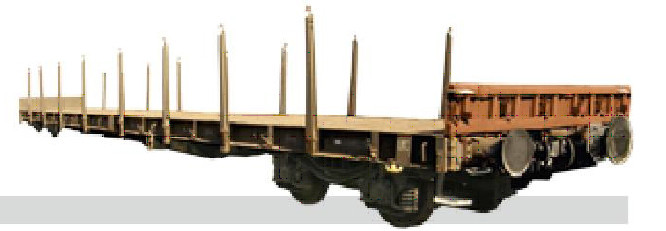

4-axle flat wagon type Rgs for container transportations

Technical description: The wagon is used for the carriage of long pieces of goods, rods, rolled iron, wood and other goods that do not require protection against atmospheric impact.
It is adapted for the carriage of containers of categories: 10, 20, 30 and 40.

The floor is flat, made of metal and impregnated with water glass and softwood.

The wagon is equipped with two pieces of articulated front walls and 16 pieces of rotating stanchions, 8 on every longitudinal wall. Installed in the floor are devices for securing the containers, operated manually.

Pictures and drawings

ВАГОН ПЛАТФОРМ 4 - ОСЕН ЗА ПРЕВОЗ НА КОНТЕЙНЕРИ тип Rgs
ВАГОН ПЛАТФОРМ 4 - ОСЕН ЗА ПРЕВОЗ НА КОНТЕЙНЕРИ тип Rgs

Technical parameters

Number of axles4
Maximum loading (t)56
Axle loading (t)20
Tare weight (t)24
Wheel base (mm)14 860
Wagon length between buffers without brake platform (mm)19 900
Usable length (mm)18 500
Usable width (mm)2 740
Usable area (m2)2 740
